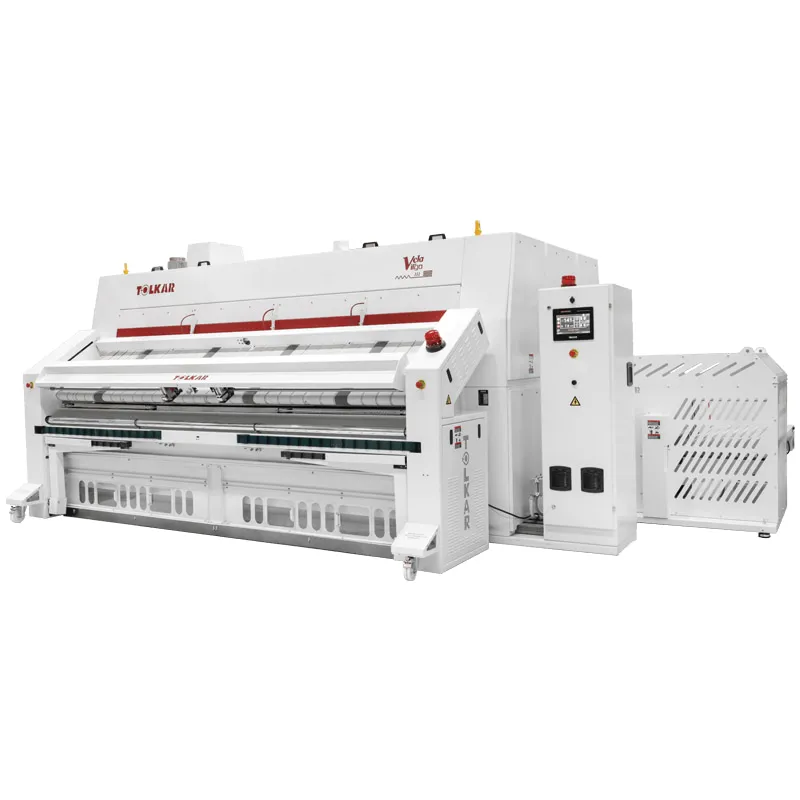

Virgo Chest-Heated Ironer with In-Built Folder
A gas chest-heated flatwork ironer with an in-built folder — 3,500 mm width, 100% chest contact for a premium finish.
280–320kg / hour
350–400pieces / hour
3,500mm working width
Why the Virgo Chest-Heated Ironer with Folder
Features
Air regulator & automatic air discharge system
Conveyor and stacker
Photocell-aided sensitive-textile measurement
Automatic speed synchronization between ironing and folding
Height-adjustable, vacuum feeding conveyor
3 primary and 3 cross folds
Double-lane folding
Gas heated
PLC controlled, 10" touch screen panel
Model data
Technical Specifications
| Heating Type | Gas |
|---|---|
| Chests (Pcs.) | 2 |
| Textile Contact With Chest (mm) | 2.000 |
| Chest Contact Rate (%) | 100 |
| Ironing Width (mm) | 3.500 |
| Ironing Capacity (Kg/hr) | 280 - 320 (617–705 lb) |
| Ironing Capacity (Pcs/hr) | 350 - 400 |
| Ironing Speed (m/min) | 4 - 18 |
| Motor Power (Kw) | 9,34 |
| Fan Power (Kw) | 2 x 1,5 |
| Gas Heating Power (Kcal/hr) | 99.000 |
| Width (mm) | 4.383 (6.110) |
| Depth (mm) | 4.166 |
| Height (mm) | 2.645 |
| Weight (Kg) | 9.350 (20,613 lb) |
Ready to spec the Virgo Chest-Heated Ironer with In-Built Folder?
You buy the machine. We handle the rest — delivery, installation, training and service, nationwide across the USA.
