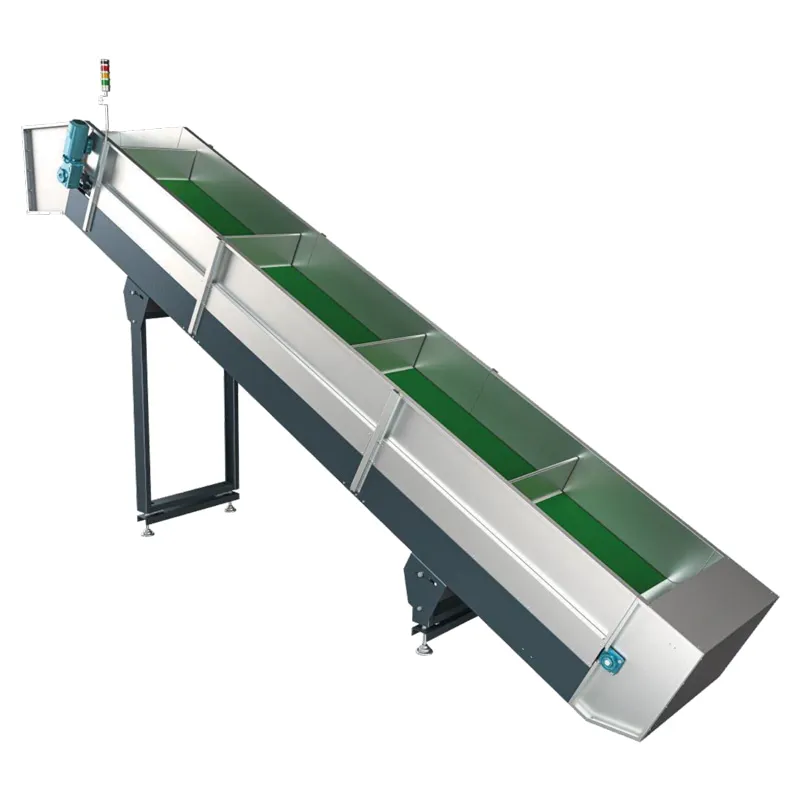

Loading Conveyor
Multi-compartment continuous batch washing with membrane press, pass-through drying and automated loading/shuttle conveyors — up to 90% man-free.
4 x 60kg per load
Why the Continuous Tunnel Line
Features
8–16 compartments, 60–80 kg per compartment
Bottom transfer system between compartments
10 Bar steam operating pressure
3-tank water recovery system
Smart weight measurement
proportional water, detergent & energy
Insulated structure
minimal heat & energy loss
PLC controlled, 15" touch screen panel
100 programs and 100 customer records
Adjustable compartment-transfer and total washing times
Remote access for parameter & program uploading
Full reporting system
Central control system managing the whole line
Model data
Technical Specifications
| Loading Capacity (Kg) | 4 x 60 |
|---|---|
| Motor Power (Kw) | 1,65 |
| Width (mm) | 8.535 |
| Depth (mm) | 1.540 |
| Height (mm) | 3.525 |
| Weight (Kg) | 980 (2,161 lb) |
Ready to spec the Loading Conveyor?
You buy the machine. We handle the rest — delivery, installation, training and service, nationwide across the USA.
